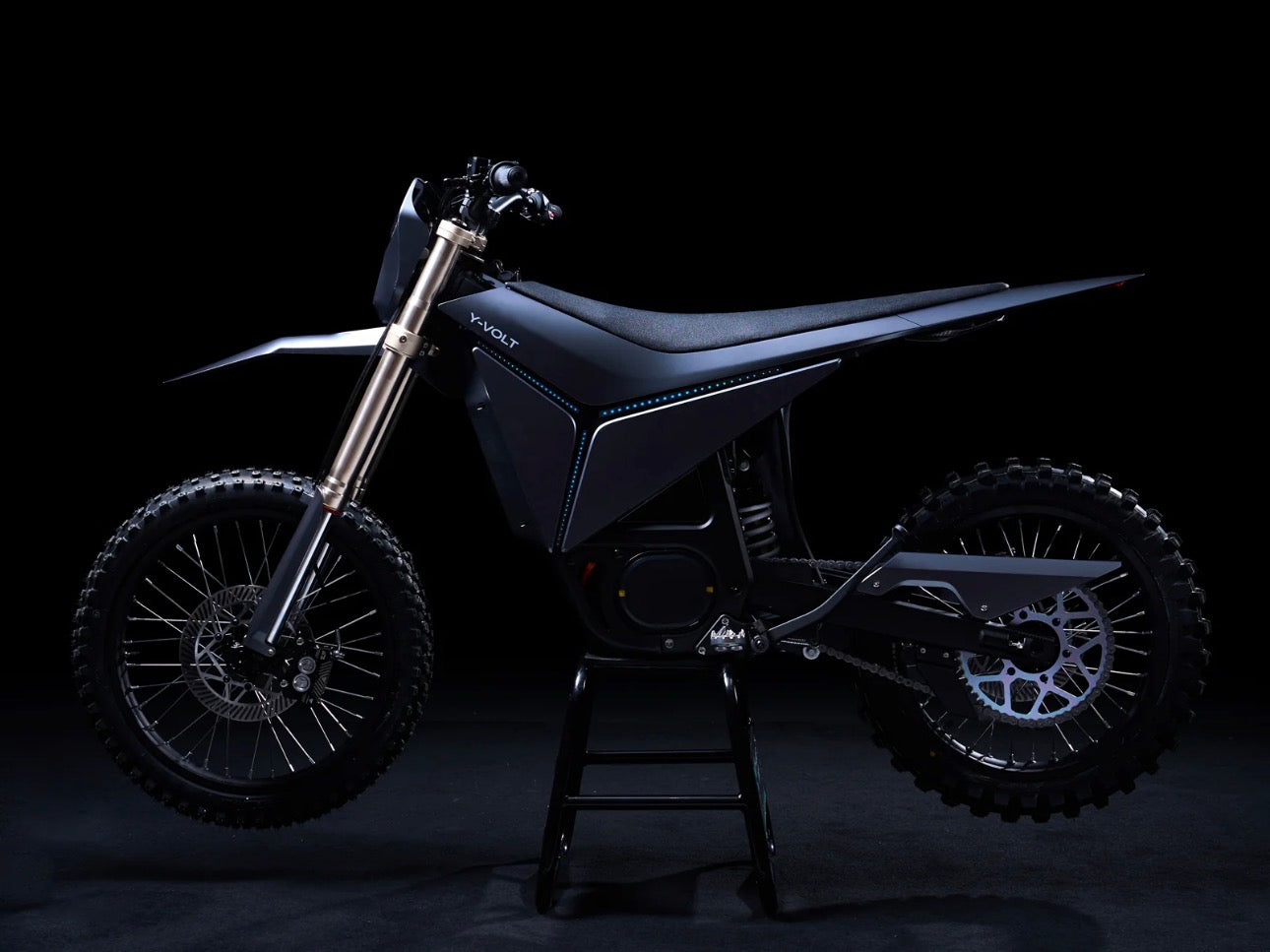

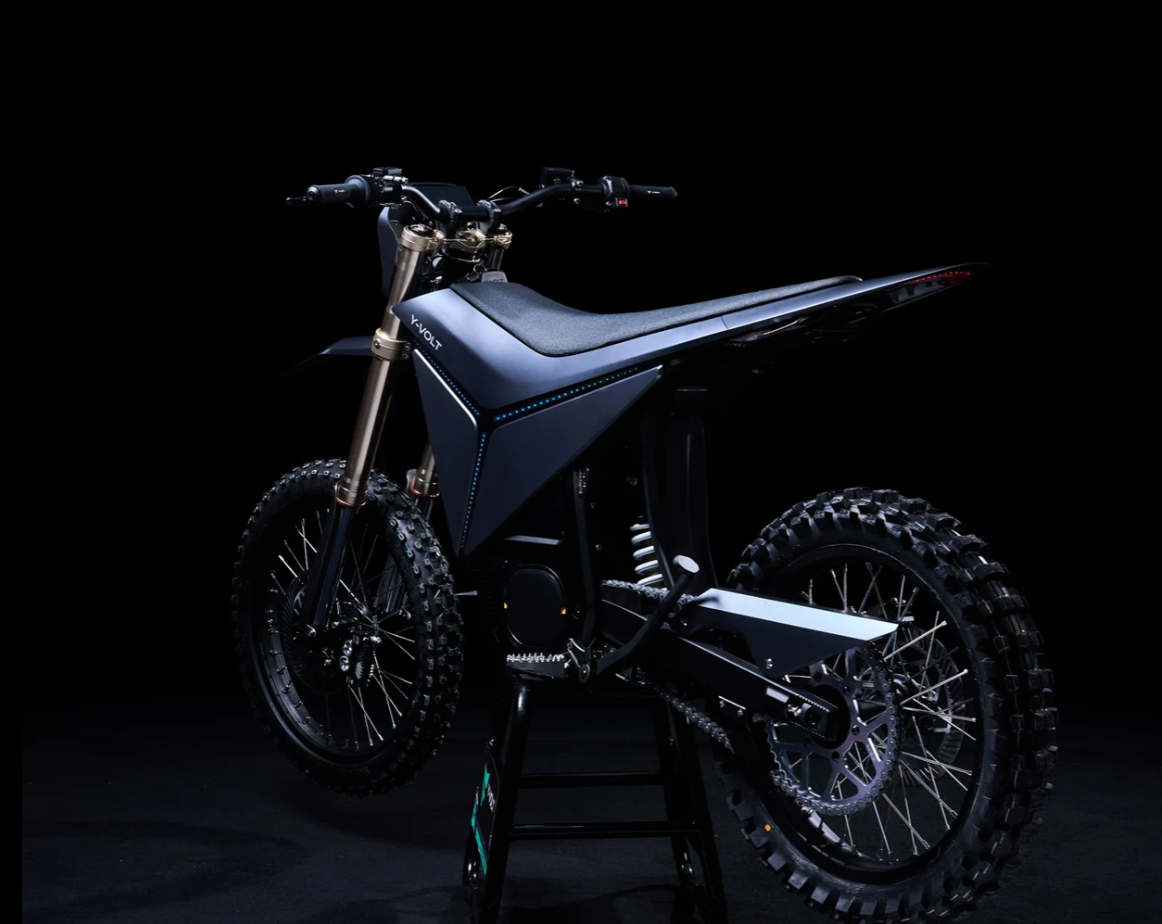

YVolt Surge V

New 2026 YVolt Surge V in stock now.



1 year factory warranty ✅



⚡ Peak Power: 35 kW

⚡Battery: 97.2V 45Ah

⚡ Peak Torque: 948 N·m

⚡ Top Speed: 72 mph | 110 km/h

⚡ Max Range: 75 miles | 120 km



Parameter Details

Basic Parameters

Size (L*W*H): 2000*830*1170mm

Weight (With battery): 204 lbs

Riding Requirements

Max Load: 265 lbs

Suitable Age: 18~55 years old

Motor

Permanent Magnet Synchronous Motor

Peak Power@35kW @48 HP

Rated Power@15kW

Battery

4.32 kWh, 97.2 V Greenway® Ternary Lithium Battery Samsung-50s Cells

Continuous discharge current: 154.32 A

Charge Time: 3 hours

Charger

15 A, 110/240 V - 50/60Hz

Output Voltage: DC 113.4V

Output Current: 15A

Controller

96V Sine Wave Vector Controller

Frame

Triple-Beam Forged  Aluminum Alloy Frame

Tires

Front: 80/100-19 49M TT NHS CST

Rear: 100/90-18 56M TT NHS CST

Drive

Primary Drive System: Gearbox

Secondary Drive System: Chain

Chain

520 pitch, 180 links, O-ring, off-road use

Torque

700 ft-lbs on the rear wheel

Communication port

RS-485+CAN

Suspension

FASTACE

Front: 830 mm total length, 50 mm out tube, 38 mm stanchions, 245 mm travel, hydraulic damping with adjustable rebound and high-/low-speed compression.

Rear: 300 mm rear wheel travel, 85 mm shock stroke, coil-spring with hydraulic and gas damping, adjustable compression and rebound

Brakes

Front: 4-piston caliper, 220mm hydraulic disc

Rear: 4-piston caliper, 220mm hydraulic disc

Rake

27.3º

Handbar

∅28.6*∅22.1*810 Aluminum alloy

Lighting System

Full LED high & low beams

Display Type

HD Smart Multi-Function Display

Others

Tip-Over Sensor: Yes

Kickstand Sensor: Yes

NFC: Yes

Night Riding Mode: Yes

Vehicle Lock Cover: Carbon Fiber

Rear Handle Bar: Carbon Fiber

APP: Bike GPS positioning, cycling trajectory tracking, parameter customization



Certificate of Origin Included
