Electric Motorcycle Drivetrain Diagnostic Help: 2026 Guide
Table of Contents
- What You'll Need Before You Start Diagnosing
- How to Trace a Drivetrain Fault Step by Step
- Electric Motorcycle Controller Troubleshooting: Reading Error Codes
- E-Moto Drivetrain Maintenance Tools Worth Owning
- DIY Safety and When to Stop Wrenching
- Surron Motor Diagnostic Services Near Me: Booking Pro Help
- Conclusion
- Frequently Asked Questions
Last Updated: September 12, 2026
What You'll Need Before You Start Diagnosing
A drivetrain diagnostic on an electric motorcycle starts with the right tools and a clear head, not guesswork. At Untamed Racing, we see riders chase symptoms for hours because they skipped the basics: a charged pack, a known-good meter, and a wiring diagram for their specific bike. Before you touch a single connector, gather these items:
- A digital multimeter rated for at least 600V DC, with sharp probes and a fresh battery (osha.gov)
- Insulated hand tools, nitrile gloves, and safety glasses
- The factory wiring schematic for your model
- A laptop or phone with your bike's diagnostic app, if it supports one
- A clean, well-lit workspace away from anything flammable
If you're missing any of these, stop and get them first. A $15 throttle tube swap is easy; a misdiagnosed controller is not.
How to Trace a Drivetrain Fault Step by Step
Tracing an electric motorcycle drivetrain fault follows a simple logic: power in, signal through, motion out. Work backward from the symptom. If the bike won't move, the fault sits somewhere between the battery and the rear wheel. Test each stage in order, and don't skip ahead.

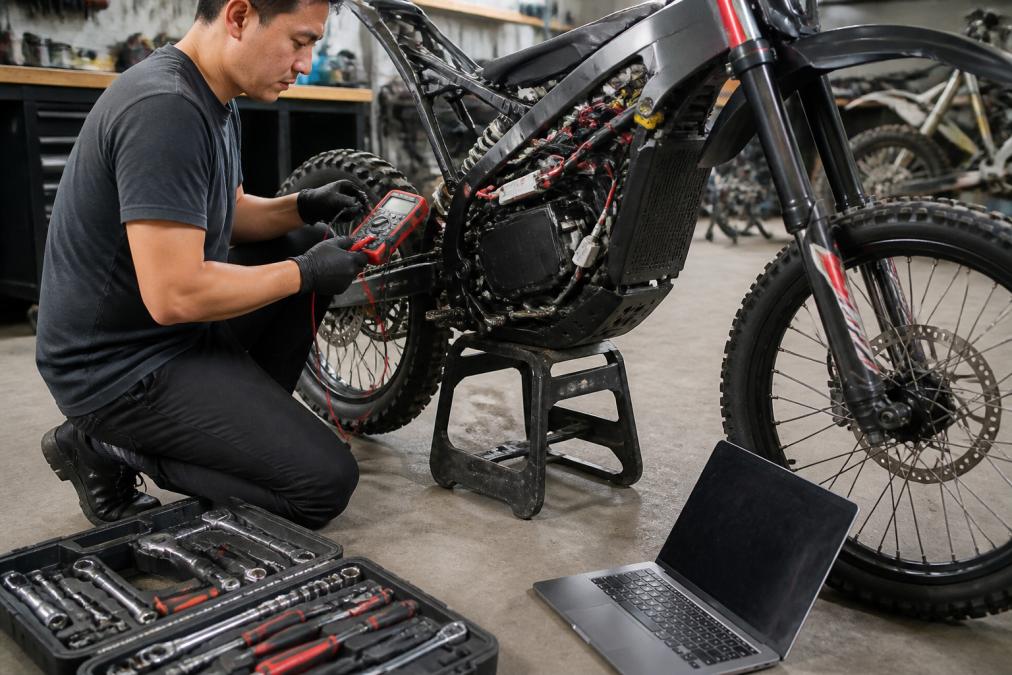

Step 1: Rule Out the Battery and BMS
Check pack voltage first. A healthy pack reads close to its nominal rating at rest; a sagging pack drops hard under load. If voltage falls off a cliff when you twist the throttle, the battery or its battery management system (BMS) is the likely culprit. Look for a BMS that won't wake up, won't balance, or cuts output early. Voltage sag under load is the classic sign of weak cells or a tired BMS.
Step 2: Test the Controller and Throttle Signal
The controller takes battery power and throttle input and drives the motor. Test the throttle signal at the controller connector: you should see a smooth voltage change as you rotate the throttle. A dead spot or jumpy reading points to a bad throttle or wiring. If the controller throws an error code, read it before swapping parts.
Step 3: Check the Motor and Hall Sensors
Hall sensors tell the controller where the motor rotor sits. A failed sensor causes stutter, no-start, or jerky power. Test each hall lead for a clean switching signal. If the motor spins freely by hand but won't run under power, suspect the sensors or a phase wire issue.
Electric Motorcycle Controller Troubleshooting: Reading Error Codes
Electric motorcycle controller troubleshooting gets much faster once you read the error codes instead of guessing. Most controllers flash a sequence of blinks or push a code to a display or app. Count the blinks, then match them to your model's fault table. Common codes point to throttle faults, hall sensor faults, over-voltage, under-voltage, and over-temperature. Write the code down before you clear it. If the same code returns after a reset, the fault is real and not a glitch.
E-Moto Drivetrain Maintenance Tools Worth Owning
E-moto drivetrain maintenance tools pay for themselves the first time you avoid a shop visit. You don't need a full pro bench, but a few items make diagnosis reliable:
| Tool | What It's For | Why It Matters |
|---|---|---|
| Digital multimeter | Voltage, continuity, signal testing | Confirms power and signal at every stage |
| Insulation tester | Detecting shorts in wiring | Catches faults a basic meter misses |
| Hall sensor tester | Verifying motor sensors | Rules out the motor before you swap parts |
| Torque wrench | Reassembly to spec | Prevents stripped fasteners and loose connections |
| Contact cleaner | Corroded connectors | Fixes intermittent faults fast |
A quality throttle tube is also worth keeping on hand. Untamed Racing stocks the Surron LBX throttle tube and the Surron Ultra Bee throttle tube, both $15.00. A worn throttle is a common cause of erratic power that looks like a drivetrain fault.
DIY Safety and When to Stop Wrenching
DIY safety on a high-voltage drivetrain is not optional.
The Repairable vs. Hazardous Decision
Work through this checklist before you open anything. If you hit a single item in the hazardous column, stop and isolate the pack.
| Condition | Repairable | Hazardous, Stop |
|---|---|---|
| Pack voltage at rest | Within ~10% of nominal | Zero volts, or wildly below nominal |
| Cell group balance | Within ~0.05-0.10 V of each other | One group more than ~0.3 V off the rest |
| Physical case | Intact, minor scuffs | Swollen, dented, punctured, or weeping |
| Smell | Neutral | Sweet, solvent-like, or acrid |
| Temperature | Ambient | Warm to the touch with no load |
| BMS behavior | Wakes, balances, reports | Dead, or repeatedly cuts output early |
A pack that is out of balance but otherwise sound is often recoverable with a balance charge and a BMS reset. A pack with a swollen cell, a sweet smell, or a cell group that will not hold voltage is not a repair candidate, it is a disposal candidate.
Isolation Procedure Before You Wrench
- Power the bike down and remove the key or disconnect the main breaker.
- Unplug the pack from the controller and let the controller's capacitors bleed down, most discharge in under a minute, but give it five to be safe.
- Verify zero volts at the controller input with your meter before touching anything.
- Work on an insulated surface, not bare concrete or a metal bench.
- Keep a Class D fire extinguisher within arm's reach. A standard ABC extinguisher will not knock down a lithium cell fire.
Know Your Limit
If you have tested the battery, controller, throttle, and motor and still cannot find the fault, the problem may live in the BMS firmware, a CAN bus communication fault, or a compatibility mismatch between components. That is the point where a shop with proper diagnostic equipment beats a driveway.
Surron Motor Diagnostic Services Near Me: Booking Pro Help
Searching for "Surron motor diagnostic services near me" usually means you've hit the wall of what a home toolbox can fix. Untamed Racing is a family-run shop in Chino Hills, California, and we work on bikes we didn't build. Bring us a Surron or Talaria with a custom pack from another shop and we'll diagnose it. Our techs ride these bikes, so we know the controller tuning, BMS behavior, and compatibility quirks that generic shops miss.
We handle everything from a quick fault trace to full custom builds, and we explain what we find in plain language, whether you're a seasoned rider or new to e-motos.
NFPA guidance on lithium-ion battery safety
Conclusion
A drivetrain fault is frustrating, but a drivetrain diagnostic follows a logical path: test power, signal, and motion in order, and read the codes instead of guessing. When the fault lives in the BMS firmware or a component mismatch, bring it to Untamed Racing. We offer hands-on diagnostics for all e-moto brands, expert controller tuning, and premium parts, all from riders who know these machines inside and out. Get started with Untamed Racing and get your bike dialed in and ready to rip.
Frequently Asked Questions
What are the common signs of an electric motorcycle drivetrain failure?
Watch for power cutting out under load, a jerky or delayed throttle response, grinding or clicking from the motor, and error codes on the display. Voltage sag under acceleration, where the pack drops several volts the moment you hit the throttle, points to a battery or BMS problem. Heat at the controller after short rides and a motor that spins rough by hand are also red flags. Catch these early and most drivetrain diagnostic work stays simple.
Can I perform electric motorcycle drivetrain diagnostics at home?
Yes, for the basics. A multimeter, a known-good charger, and the bike's own error codes let you check pack voltage, throttle signal, and hall sensor output at home. If your checks point inside the battery or controller, stop and book professional drivetrain diagnostic help.
What tools are needed for electric motorcycle drivetrain repair?
At minimum: a digital multimeter, a watt meter or clamp meter for current draw, insulated hand tools, and a torque wrench for motor and axle bolts. For deeper work you want a controller programming cable, a hall sensor tester, and a battery capacity tester. E-moto drivetrain maintenance tools like these cover most faults. Add heat-shrink, dielectric grease, and spare connectors so a repair does not stall waiting on parts.
When should I seek professional diagnostic services for my e-moto?
Book a shop when the fault is intermittent, when error codes keep returning after a reset, or when the issue sits inside the battery pack, BMS, or controller. Also go pro if you have replaced the obvious parts and the bike still cuts out.
